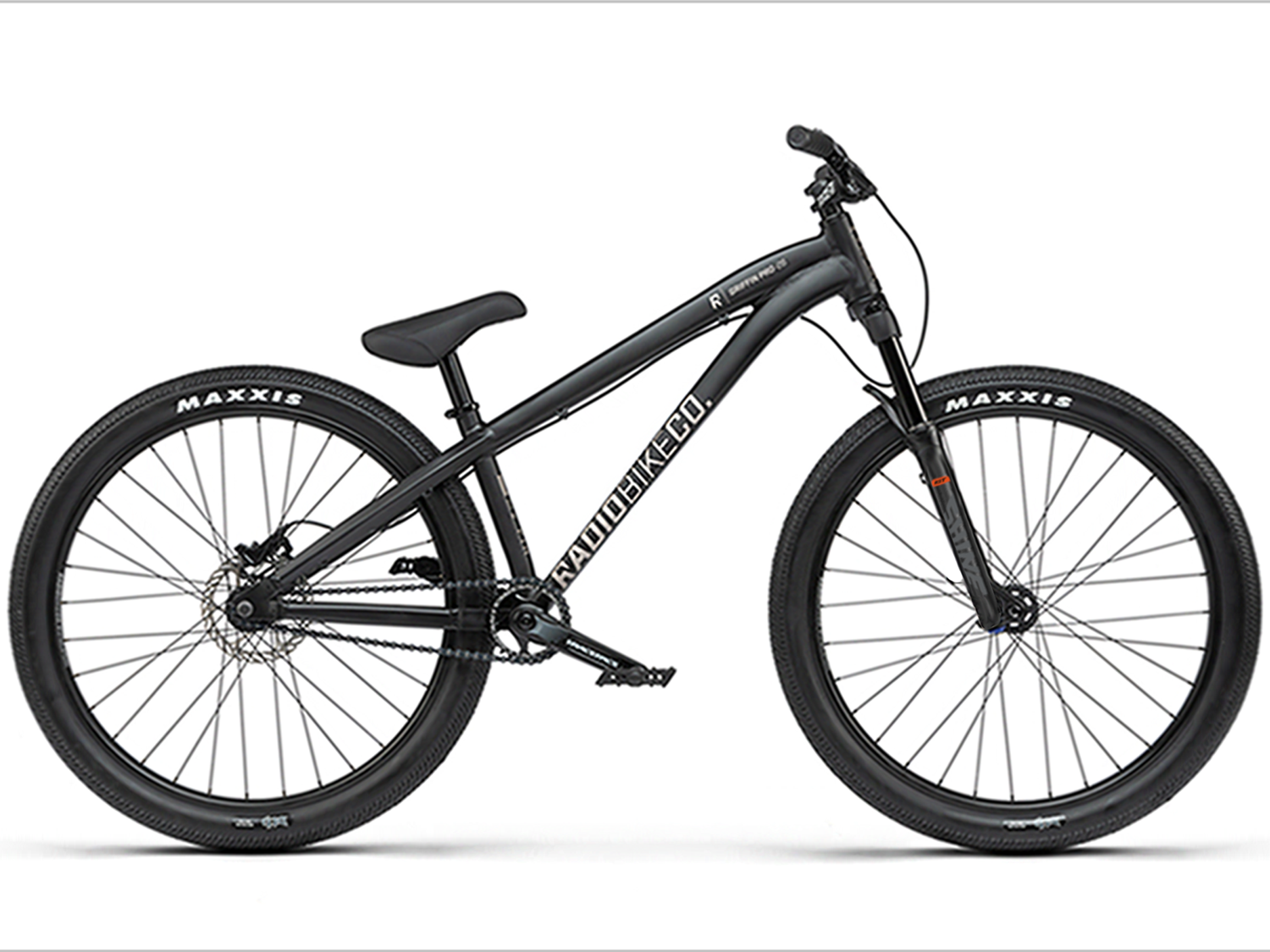

The crème de la crème of 26” bikes, the Griffin Pro is built around a super light and stiff 6061-T6 alloy frame and is adorned with RST forks and a premium level parts package from Race Face and Maxxis. A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.

Specifications
Frame - Radio 'Griffin Pro' frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
Fork - RST Shine Air 26"
Handlebar - Radio 'Griffin' bar, 6061-T6 alloy, 35mm
Grips - Radio 'Frequency XL' grips, flangeless, 160mm
Stem -Race Face 'Chester 35' front load stem, alloy, 40mm reach
Headset - FSA No.42/ACB-A integrated a-headset, 1-1/8″-1.5″
Brake lever - Tektro 'RS-360A' front, SRAM Db-lvl-A1 rear
Brake - Tektro 'Aries' mechanical disc brake front, SRAM Db-lvl-A1 hydraulic disc brake rear, 160mm rotor
Crank - Race Face 'Aeffect' crank alloy, 170mm
BB - Race Face "AEFFECT" BSA bb set, sealed bearing
Pedals - Radio 'Slim' BSA bb set, sealed bearing
Chain - SALT 'AM' chain, WZ1 type
Sprocket - Race Face 'Aeffect' alloy sprocket 28T
Driver- 10T cassette driver, sealed bearing
Front hub - Radio 'Pro Dj' disc hub, sealed, 15mm alloy through axle, 32h
Rear hub - Radio 'Pro Dj' disc hub, sealed, 3/8″s Cr-Mo axle, 32h
Front rim - Radio 'DB-T25' rim, double wall, sleeved
Rear rim - Radio 'DB-T25' rim, double wall, sleeved
Seat - Radio 'Century' pivotal seat, fat padded
Seat post - Radio pivotal seat post, alloy
Seat clamp - Radio 'Slim' 31.8mm alloy clamp
Tyres - Maxxis 'DTH' tyres, 2.3″ front & rear
Weight - 11.31kg / 24.94lbs

Frame geometry
Top tube length 22.8″
Chain stay length 15″
Head tube angle 70°
Seat tube angle 70°
Bottom bracket height 14mm drop
Standover height 10.2″

Handlebar geometry
Rise 50mm
Width 760mm
Backsweep 8°
Upsweep 3°
