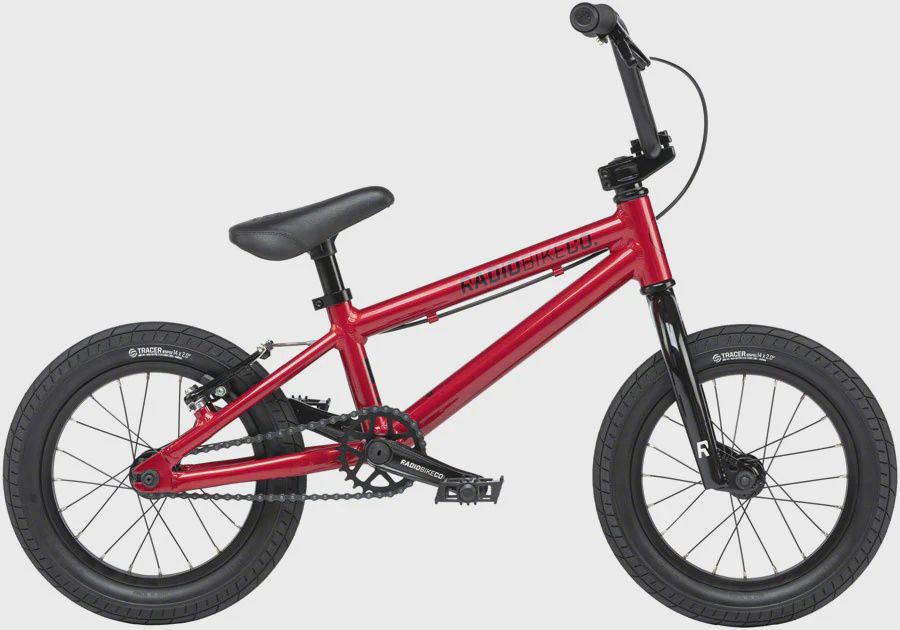

Radio Dice 14"

Radio turned a few heads when they introduced the all-new Dice line with super lightweight 6061-T6 alloy frames allowing smaller riders to learn on a lighter and more agile bike. This year Radio have taken this concept of a lighter kids bike and introduced a smaller 14” model which also includes a new 6061-T6 forged alloy crank making this bike even lighter than previously possible and unlike anything else on the market.

Specifications
Frame - Radio 'Dice 14' frame, full 6061 alloy
Fork - Radio 'Rookie 14' fork, 1020 hi-ten, tapered legs
Bars - Radio 'Rookie 14' bar, 1020 hi-ten
Grips - Radio 'AM' grips, flangeless, 110mm
Stem - Radio 'Junior' top load stem, 40mm reach
Headset - Fsa A-Headset, loose ball
Lever - Radio 'Junior 14' brake lever, alloy, front & rear
Brakes - Radio 'AM' caliper brake, alloy, front/Radio 'AM'-V V-brake, alloy, rear
Cranks - Radio 'Junior 14' 3pc crank, forged alloy, 114mm
BB - Bsa (68) BB set, 19mm, sealed, Jis taper
Pedals - Radio 'Rookie' pedals, nylon
Chain - Kmc S1 chain
Sprocket - Radio 'Junior' sprocket, steel, 25T
Driver - Cassette driver, 10T, looseball
Front Hub - Radio 'AM' hub, alloy, loose ball, 3/8"S male axle, 20H
Rear Hub - Radio 'AM' cassette hub, alloy, semi-sealed, 10T, 3/8"S axle, 20H
Front Rim - Radio 'Rookie' rim, single wall
Rear Rim - Radio 'Rookie' rim, single wall
Seat - Radio 'Rookie' combo seat
Seat Clamp - Radio slim seat clamp, alloy
Tyres - Salt 'Tracer' tyres, 2.0", front & rear
Weight - 7.70 kg

Frame Geometry
Top Tube Length - 14.5"
Chain Stay Length - 10.5"
Head Tube Angle - 74°
Seat Tube Angle - 73°
Bottom Bracket Height - 8.2"
Standover Height - 5.75"

Bar Geometry
Rise - 6.5"
Width - 22.4"
Backsweep - 8°
Upsweep - 2.5°
