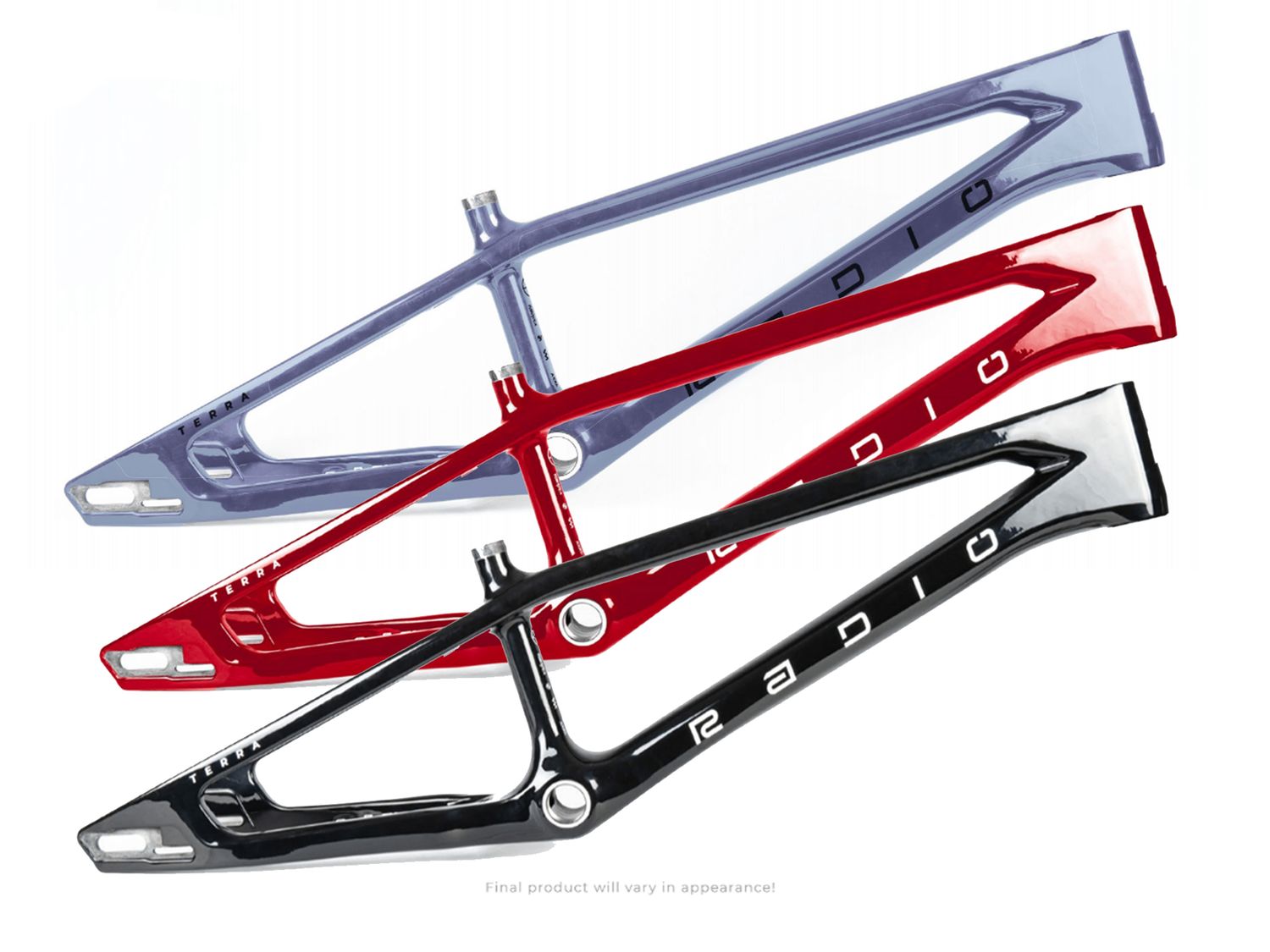

Radio Terra Frame

Features
• Full monocoque technology
• NEW disc-brake-specific model with internal cable routing
• Flat mount disc brake only (not compatible with v-brakes) forged and CNC machined Sliding Dropout Disc System (SDDS) with integrated chain tensioners. (Choose from 10mm or 15mm dropout adapters)
• Laboratory tested for superior strength to weight
• BB and head tube areas for increased stiffness
• Designed for 140mm and 120mm rotors (please check 120 mm rotor fitment with an authorised Radio Bikes dealer based on your hub and brake calliper dimensions)
• fits 2.0” (50 mm) tyres MAX
• 30mm of dropout adjustment
• Steeper head tube and shorter backend for snappy and responsive race-winning geometry

Specifications
Material - High-performance TORAYCA carbon fibre
Top tube length (actual) – Pro XL - 21.25” (539.3mm), Pro XXL - 21.75” (552.6mm), Pro XXXL - 22.25” (564.9mm)
Chain stay length (min.) – Pro XL - 14.3” (364mm), Pro XXL - 14.3” (364mm), Pro XXXL - 14.7” (374mm)
Dropout size - Sliding dropout disc system (SDDS)
Head tube angle -74°
Seat tube angle - 71°
Head tube size (full int.) - tapered 1-1/8” - 1.5” (125mm)
Seat post size - 27.2mm
Seat tube length – 231mm
Bottom bracket type - Euro, threaded, BSA 68mm
Bottom bracket height – 11.6”
Wheel size – 20 x 1.75”
Weight – 1.31kg (2.8lbs) - Pro XL - weight will vary depending on size
